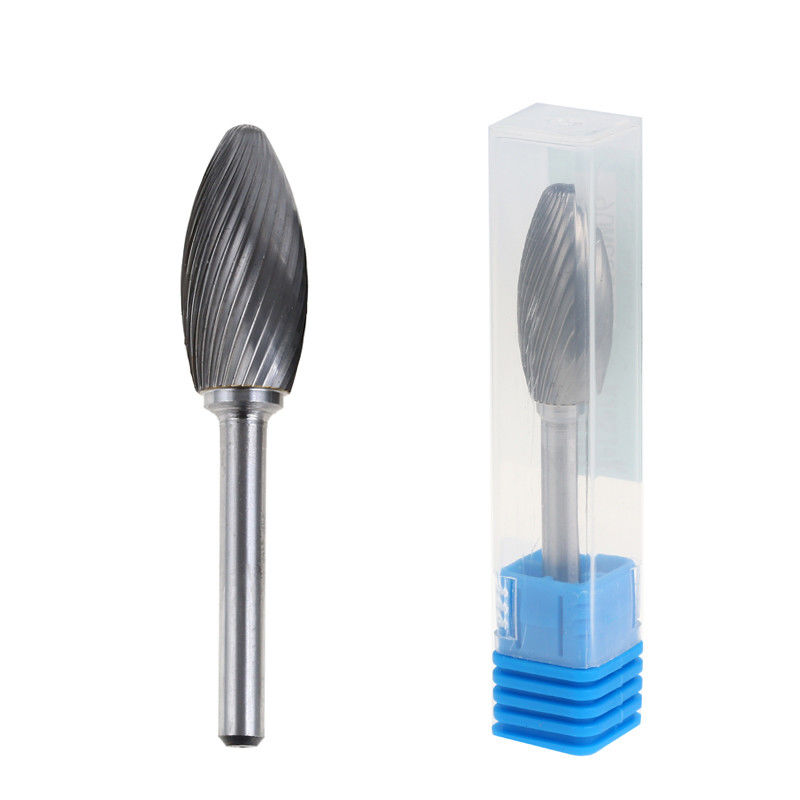

Taglienti brasati del carburo di tungsteno di 6mm con lo stinco di 45mm

100 pezzi
MOQ
$1-$10/Piece
prezzo
Taglienti brasati del carburo di tungsteno di 6mm con lo stinco di 45mm
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Nome: Sbavature del carburo cementato
Testa: Carburo di tungsteno
Saldatura: Saldatura d'argento
Solido/brasato: Brasato
Trasporto: Il mare/aria/esprime
OEM: disponibile
Stinco: 1/4Inch
Lunghezza di stinco: 45MM
Evidenziare:

taglienti del carburo di tungsteno di 6mm

,

Taglienti brasati del carburo di tungsteno

,

archivi rotatori del carburo dello stinco di 45mm

Informazioni di base
Luogo di origine: Sichuan, Cina
Marca: KTS
Certificazione: ISO9001
Numero di modello: H
Termini di pagamento e spedizione
Imballaggi particolari: CUSTODIA IN PLASTICA
Tempi di consegna: 7-30days
Termini di pagamento: T/T, Western Union
Capacità di alimentazione: 250000 pezzo/pezzi al mese
Descrizione di prodotto

6mmTungsten Carbide Rotary Files Power Tools Tungsten Carbide Drill Bits

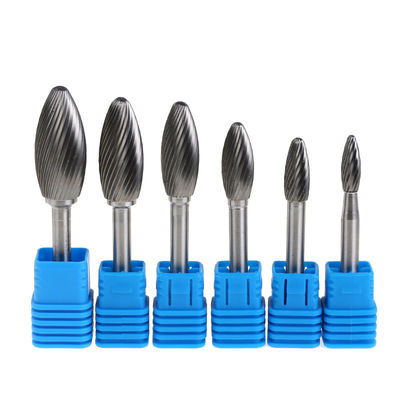

A Burr (sometimes called rotary files) are small cutters used in die grinders, rotary tools or dentist's drills. The name may be considered appropriate when their small-sized head (3 mm diameter shaft) is compared to that of a seed of the burr fruit or the teeth compared to a metal burr. To maintain the correct surface speed and cutting conditions they are rotated at the highest speed possible, commensurate with their size and construction. The cutters shown in the image are made from tungsten carbide, which allows them to run at higher speeds than similar HSS cutters, yet still maintain their cutting edges. Burrs (the tools) are also used in CNC machining centers for removing burrs (the small flakes of metal) after a machining process. These tools usually spin at several thousand RPM. Because the cutting edges are so small, they can be touched when spinning by a finger without cutting the skin, which flexes out of the way, although it would not be safe to pinch or grip them from two s ides. Hard metal or ceramic workpieces cannot flex beyond the cutting edges, so the tools remove material from them. This characteristic makes them suitable for dentistry, as the tool will grind the hard enamel of teeth, yet leaves soft mouth tissues unharmed if the tool should erroneously touch them.

We offer a wide assortment of carbide burrs as part of the Dormer rotary tooling program. Our range covers a variety of applications and materials, including hardened steel, non-ferrous materials and plastics.



SH:Flame Shape



Tool Number

Single Cut

Tool Number

Double Cut

Shape

Cutting Dia.

D1

Shank Dia.

D2

O.A.L.

L1

L.O.C.

L2

725-SH41 727-SH41 SH-41M 3 3 38 6.3
725-SH41L2 727-SH41L2 SH-41M 3 3 50 6.3
725-SH41L3 727-SH4L3 SH-41M 3 3 76 6.3
705-SH53 707-SH53 SH-53M 4.75 3 48 9.5
705-SH1 707-SH1 SH-1M 6 6 50 16
705-SH2 707-SH2 SH-2M 8 6 64 19
705-SH5 707-SH5 SH-5M 12.7 6 76 32
705-SH6 707-SH6 SH-6M 16 6 87 36
705-SH7 707-SH7 SH-7M 19 6 92 41
