Carburo cilindrico Burr Long Head Rotary Burrs ISO9001 di YG8 YG10X

100 Piece / Pieces
MOQ
$1.00 - $10.00/ Pieces
prezzo

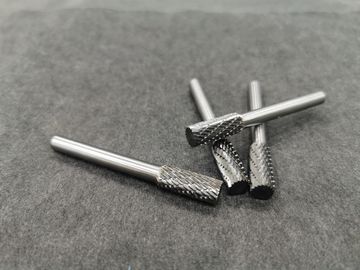

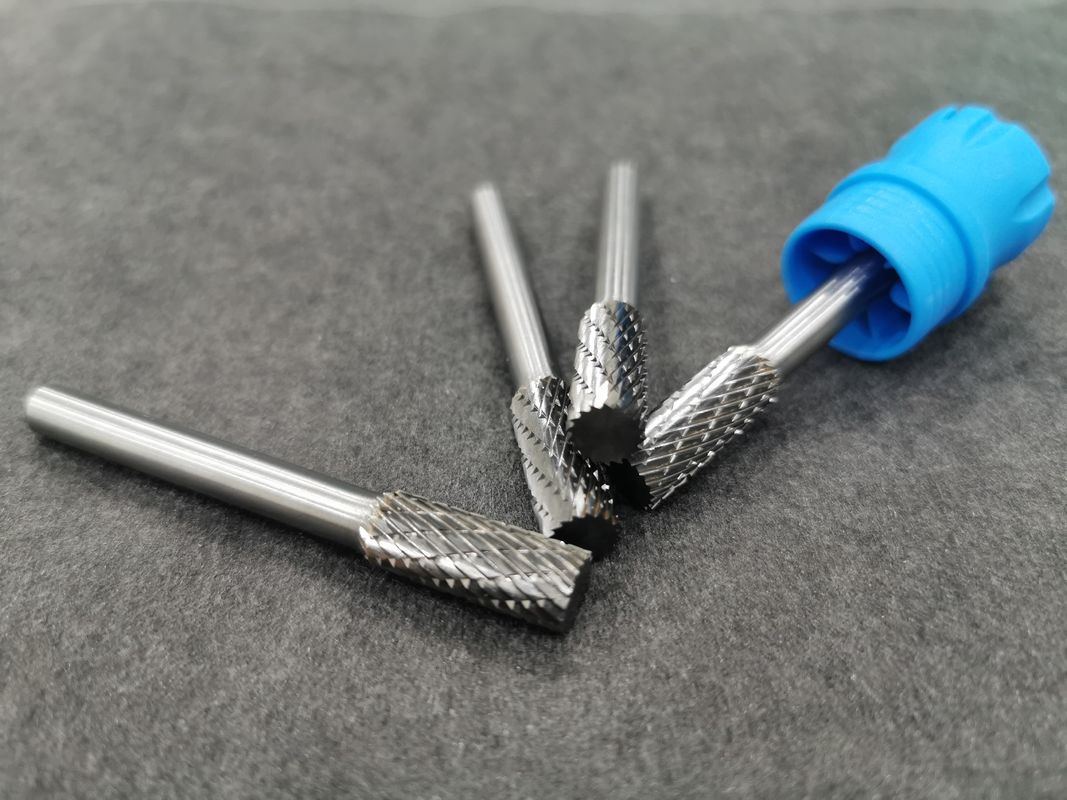

Carburo cilindrico Burr Long Head Rotary Burrs ISO9001 di YG8 YG10X
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Nome: Lime rotanti in carburo di tungsteno
Materiale: Carburo di tungsteno
Forma: Cilindrico
Grado: YG6/YG8/YG10X
Colore: Argento/oro
Stinco: 40 CrMo
Logo: Su misura
Campione: Fornito
Certificato: ISO9001: 2008
Tipo di affari: Integrazione di produzione e commercio
Porto: SHENZHEN/CHENGDU/GUANGZHOU
Evidenziare:

Sbavatura cilindrica del carburo di YG10X

,

Il carburo cilindrico sbava YG8

,

Sbavature rotatorie cape lunghe ISO9001

Informazioni di base
Luogo di origine: Sichuan, Cina
Marca: KTS
Certificazione: ISO9001:2008
Numero di modello: SA/AS5/SA-5F
Termini di pagamento e spedizione
Imballaggi particolari: Scatola di plastica in cartone standard dell'esportazione
Tempi di consegna: 7-15 giorno
Termini di pagamento: L / C, T / T, Western Union
Capacità di alimentazione: 250000 pezzo/pezzi al mese
Descrizione di prodotto

CYLINDRICAL BURRS FLAT HEAD END CUT LONG HEAD ROTARY BURRS HEAD BURRS

Product Description:

Material: 100% of raw materials.

Tolerance: strict tolerance extent control, which can reach +/-0.01mm;

Grades: various for choice: YG6, YG8, YG8C, YG11C,YG15C and so on.

Types: standard, conical, parabolic,ballistic

Physical performance: high hardness and impact toughness, very good mechanical & chemical stability.



How to use the carbide burrs:

1. Speed /RPM

The speed at which you use your carbide bur in your rotary tool will depend on the material you're using it on and the contour being produced but it's safe to say you do not need to exceed speeds of 35,000 RPM. The table below shows some approximate speeds.
Diameter of Burr RPM
2. 35mm or 3/32" 17,000 - 26,000
3mm or 1/8" 17,000 - 26,000
6mm or 1/4" 11,000 - 16,500
12mm or 1/2" 8,000 - 12,000
16mm or 5/8" 7,650 - 11,500
2. Apply only a little pressure
As with all drill bits and burrs, let the burr do the work and apply only a little pressure otherwise the cutting edges of the flutes will chip away or become smooth too quickly, reducing the life of your burr.
3. Keep The Carbide Burr On The Move
When using your carbide burr try not to keep it still for too long as this will prevent the burr from digging and jabbing into your material causing unsightly marks and roughness.



Advantage of our carbide burrs:



· 100% quality and brand new.
· Can Process a variety of metal and non-metal, processing hardness would up to HRA89-92.5
· In a great part of the work, it can replace the petiole small wheel, and no dust pollution.
· High production efficiency, the processing efficiency is several times higher than file, nearly 10 times higher than small wheel stalk.
· High product processing quality, high finish, can process out a various of high-precision mold cavity.
· Long life, the durability is 10 times higher than high-speed steel cutting tool, 200 times higher than small grinding wheel.
· Easy to use, safe and reliable, can reduce labor intensity, improve the working environment.
· Suitable for processing these metal and non-metal, such as cast iron, cast steel, bearing steel, high carbon steel, chrome-nickel alloy, bronze, brass, and ceramic tile, marble, jade, bone, etc.



Product Application:
Tungsten carbide burr is used widely in the shipping construction, auto engine porting and foundry fabrication. With its high rotating speed and hardness, it can machine a lot of different materials like cast iron, carbon steel, alloy steel and non ferrous material. High life service of product is warranted for virgin and excellent raw material which is one of most critical factors to the tools' life.
Our Advantages

Why choose KTS?
Risk guarantee
·100% raw material, no waste tungsten carbide added
·Do not use through hole, tail hole welding
·100% factory direct sales
Related Products

Packing&Shipping
Plastic box in Standard export carton

1.Sea Transportation
2.Air Transportation
3.Land Transportation
4.Railway Transportation
